# Creating an SNMP Trap Destination

SNMP traps are automatically generated on TMedia platforms by the NetSNMP installation, which monitors hardware and software interfaces registered with the ifTable of the IF-MIB module. When the operation status of an interface changes, a trap is generated by NetSNMP, and sent to a destination address for processing. In order for traps to be generated, an SNMP trap destination must be defined in the Web Portal.\
\
To create an SNMP trap destination, do the following:\
NOTE: The procedure will vary, depending on whether you create a trap destination for SNMPv1/v2, or for SNMPv3.<br>

1-Click Services in the navigation panel.

<figure><img src="https://docs.telcobridges.com/w/images/c/c5/Snmp_cfg_A_0.png" alt=""><figcaption></figcaption></figure>

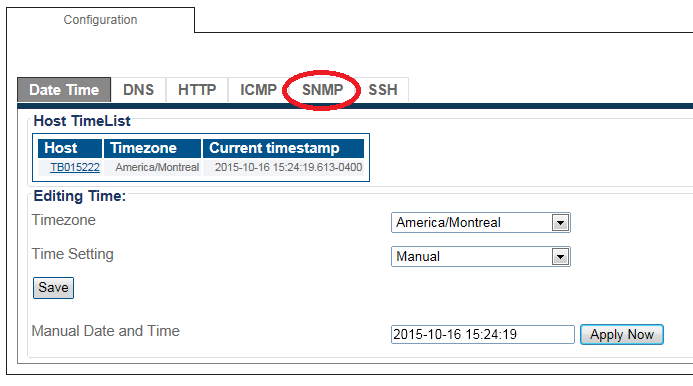

2-Select the SNMP tab.

<figure><img src="https://docs.telcobridges.com/w/images/5/59/Snmp_cfg_A_1.png" alt=""><figcaption></figcaption></figure>

\

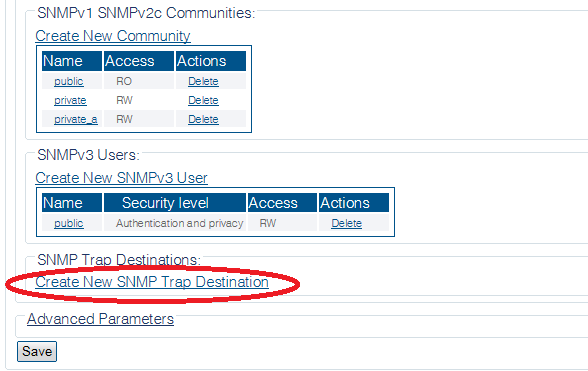

3-Create New SNMP Trap Destination

<figure><img src="https://docs.telcobridges.com/w/images/9/96/Snmp_Trap_0.png" alt=""><figcaption></figcaption></figure>

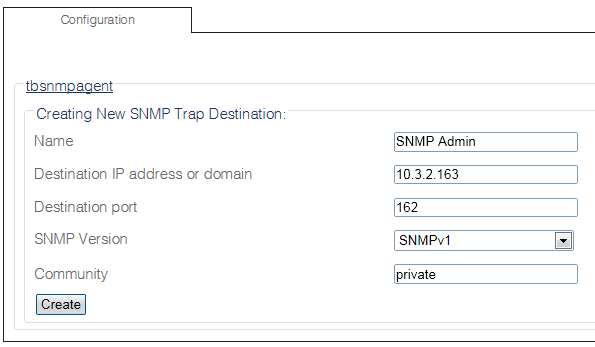

Creating an SNMPv1/v2 Trap Destination

* In the trap destination configuration panel, set the following parameters if you are creating a trap destination for SNMPv1/v2:
  * Enter a name to identify the trap destination
  * Enter a destination IP Address for sending generated traps
  * Enter a destination port number, on which to send generated traps (standard default value is 162)
  * Select version 1 or 2 from SNMP Version
  * Enter the name of the SNMPv1/v2 community to use (configured previously)
  * Click Create

<figure><img src="https://docs.telcobridges.com/w/images/1/11/Snmp_Trap_1.png" alt=""><figcaption></figcaption></figure>

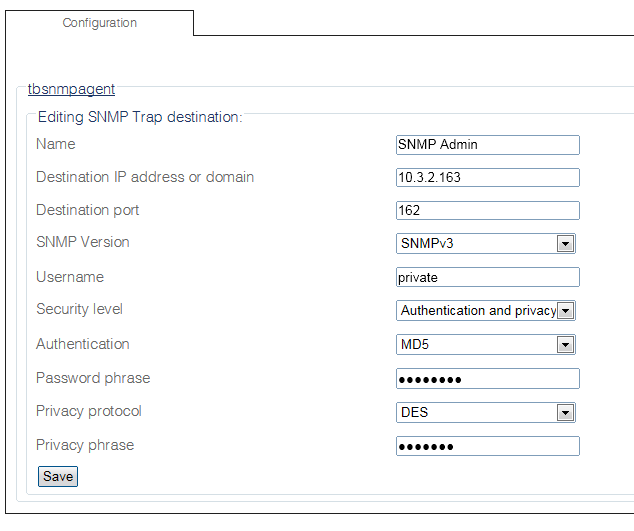

Creating an SNMPv3 Trap Destination

* In the trap destination configuration panel, set the following parameters if you are creating a trap destination for SNMPv3:
  * Enter a name to identify the trap destination
  * Enter a destination IP Address for sending generated traps
  * Enter a destination port number, on which to send generated traps (standard default value is 162)
  * Select version 3 from SNMP Version
  * Enter the name of the SNMPv3 user to use (configured previously)
  * Select a security level for the user from the security level drop-down box
  * Select an appropriate authentication algorithm for the user from the authentication drop-down box
  * Enter the appropriate authentication pass phrase for the user
  * Select an appropriate privacy standard for the user from the privacy protocol drop-down box
  * Enter the appropriate authentication privacy phrase for the user
  * Click Create

<figure><img src="https://docs.telcobridges.com/w/images/0/00/Snmp_Trap_1a.png" alt=""><figcaption></figcaption></figure>

* Verify that the "SNMP Trap Destination was Successfully Created" message is displayed and that the new SNMP trap destination appears in the SNMP Trap Destinations list

<figure><img src="https://docs.telcobridges.com/w/images/2/20/Snmp_Trap_A_5.png" alt=""><figcaption></figcaption></figure>

<br>

### List of Parameters

* SNMPv1/v2
  * [Name](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-name)
  * [Destination IP address or domain](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-destination-ip-address-or-domain)
  * [Destination Port](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-destination-port)
  * [SNMP Version](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-version)
  * [Community](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-community)
* SNMPv3
  * [Name](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-name)
  * [Destination IP address or domain](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-destination-ip-address-or-domain)
  * [Destination Port](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-destination-port)
  * [SNMP Version](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-version)
  * [Username](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-username)
  * [Security Level](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-security-level-snmpv3)
  * [Authentication](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-authentication)
  * [Password phrase](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-password-phrase)
  * [Privacy protocol](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-privacy-protocol)
  * [Privacy phrase](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-privacy-phrase)
