Create Session Border Gateway Access Control List (ACL) Filters

To customize the actions of a firewall rule, you can add a filter to the rule.

1-Click ACL in the navigation panel.

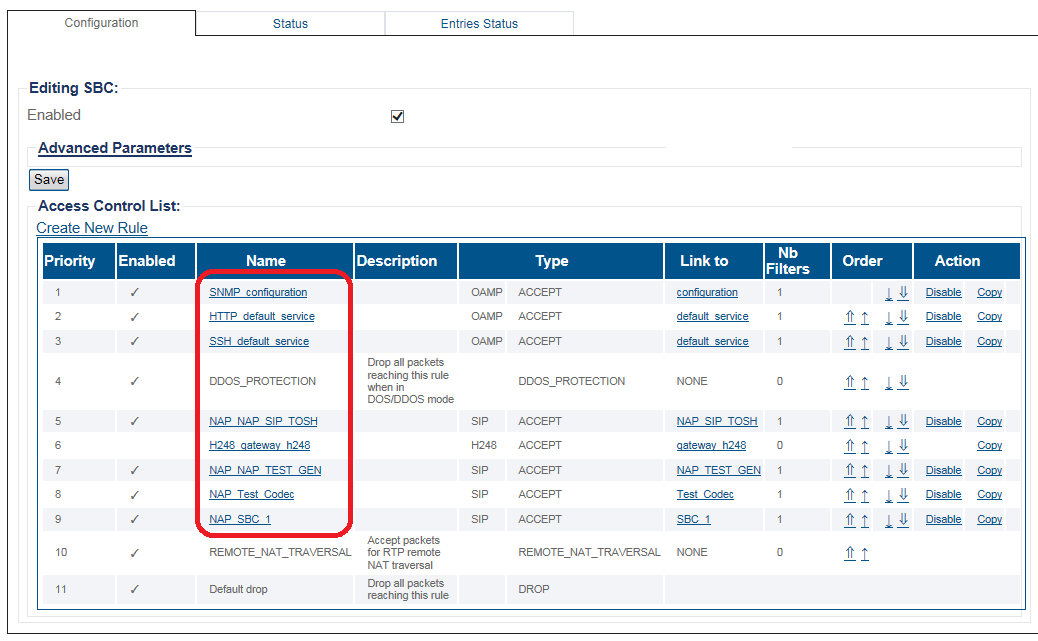

2-Select a firewall rule.

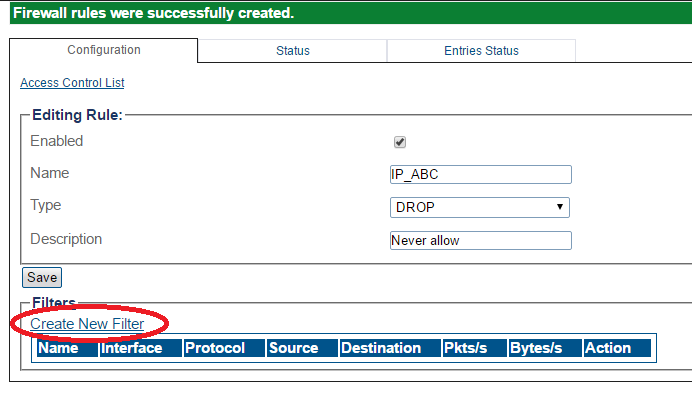

3-To define what the rule will do, click Create New Filter.

Note: The Create New Filter option is available when you create a new Firewall rule and have not yet created a filter. Otherwise, you can select the existing filter to edit it.

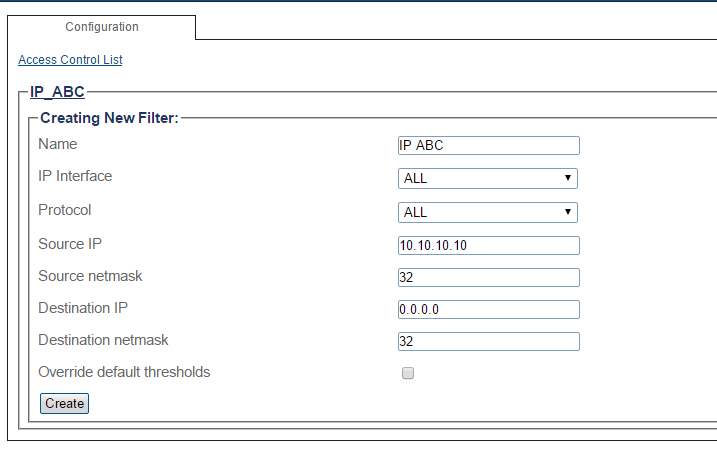

2-Enter values for the filter.

• Click Create

To change the priority of an access rule, use the arrow icons.

• To increase the priority of an access rule, use either the double or single arrow to move the rule up by one position, or to the top of the list.

• To decrease the priority of an access rule, use either the double or single arrow to move the rule down by one position, or to the bottom of the list.

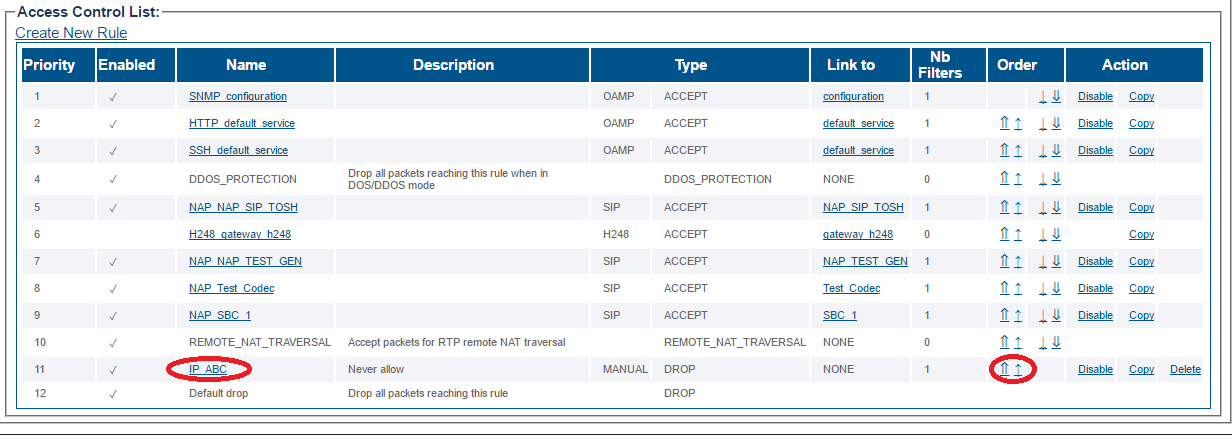

Position of sample rule before it is moved

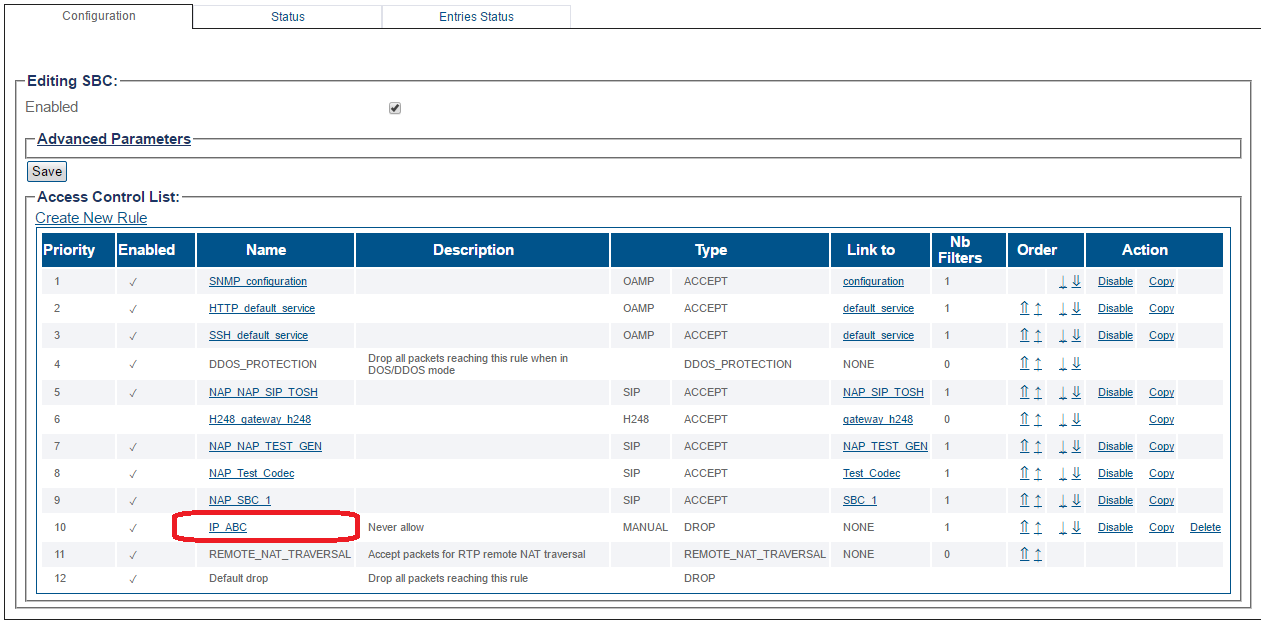

Position of sample rule after it is moved

List all ACLs

You can use this command on the console to list all ACL entries:

tbstatus /firewall/host/entry/entrylist

List of Parameters

SBC Filter

• Name

• IP Interface

• Protocol

• Source IP

• Source Netmask

• Source Port

• Destination IP

• Destination Netmask

• Destination Port

• Override Default Thresholds
