# Configuring the SNMP Agent

Once you have successfully activated the tbSnmpAgent application, follow these steps to configure the SNMP system parameters:

\
1-Click Services in the navigation panel.

<figure><img src="https://docs.telcobridges.com/w/images/c/c5/Snmp_cfg_A_0.png" alt=""><figcaption></figcaption></figure>

2-Select the SNMP tab.

<figure><img src="https://docs.telcobridges.com/w/images/5/59/Snmp_cfg_A_1.png" alt=""><figcaption></figcaption></figure>

\

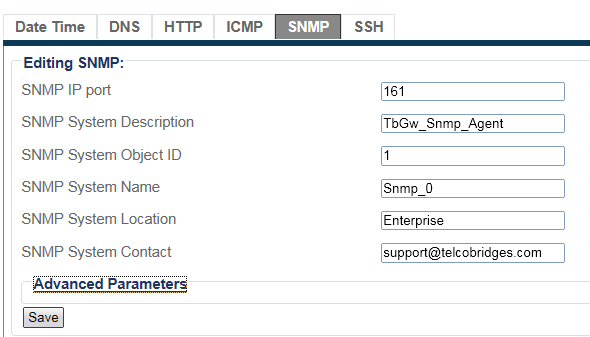

3-Enter values for the following parameters:

* SNMP IP Port: The IP port to use for making SNMP requests (standard default value is 161).
* SNMP System Description: The textual description that will appear when polling the sysDescr variable of the SNMPv2-MIB.
* SNMP System Object ID: The value appended to TelcoBridges' value (.1.3.6.1.4.1.21776.3) for the SNMPv2-MIB variable sysObjectId\*\*SNMP System Name: the textual description that will appear when polling the sysName variable of the SNMPv2-MIB.
* SNMP System Location: The textual description that will appear when polling the sysLocation variable of the SNMPv2-MIB.
* SNMP System Contact: The textual description that will appear when polling the sysContact variable of the SNMPv2-MIB.<br>

<figure><img src="https://docs.telcobridges.com/w/images/2/23/Snmp_cfg_A_2.png" alt=""><figcaption></figcaption></figure>

\
\

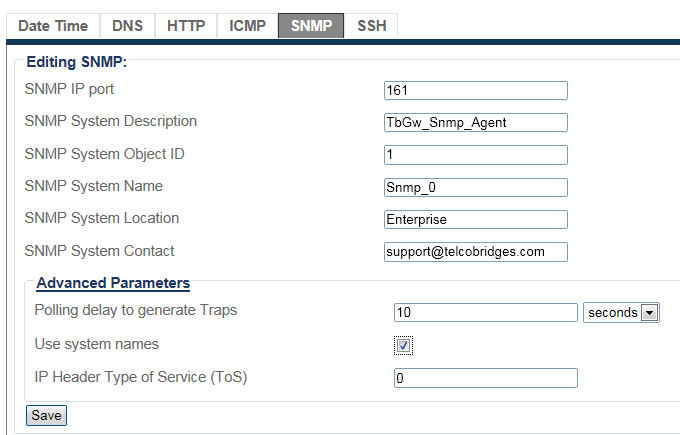

4-Click Advanced Params to view or change advanced settings for the following parameter(s):

* Polling delay to generate traps: Sets the length (in seconds) for the time intervals at which the SNMP agent polls for newly generated traps.
* Use system names: Indicates that SNMP uses the names interfaces of the system instead of the names interfaces generated by adapters.

<figure><img src="https://docs.telcobridges.com/w/images/a/ac/Snmp_cfg_A_3.png" alt=""><figcaption></figcaption></figure>

* Click Save

\
\
5-Verify that the Tbsnmpagent was sucessfully updated message is displayed.

<br>

<figure><img src="https://docs.telcobridges.com/w/images/a/a6/Snmp_cfg_6.png" alt=""><figcaption></figcaption></figure>

### List of Parameters

* [SNMP IP port](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-ip-port)
* [SNMP System Description](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-system-description)
* [SNMP System Object ID](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-system-object-id)
* [SNMP System Name](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-system-name)
* [SNMP System Location](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-system-location)
* [SNMP System Contact](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-snmp-system-contact)
* Advanced SNMP Parameters
  * [Polling delay to generate Traps](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-polling-delay-to-generate-traps)
  * [Use system names](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-use-system-names)
  * [IP Header Type of Service (ToS)](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-packet-network-type-of-service)
