# Creating a SIP Registrar

A SIP registrar represents a SIP endpoint that provide a location service. You must configure SIP Registrar for your system. The first step in doing so is to select your SIP Domain:

1- Click on your domain in the SIP Domain List

<figure><img src="https://docs.telcobridges.com/w/images/4/42/Select_SIP_Domain.png" alt=""><figcaption></figcaption></figure>

\
2- Click Create New SIP Registration Registrar

<figure><img src="https://docs.telcobridges.com/w/images/b/bf/Create_New_SIP_Registrar.png" alt=""><figcaption></figcaption></figure>

\

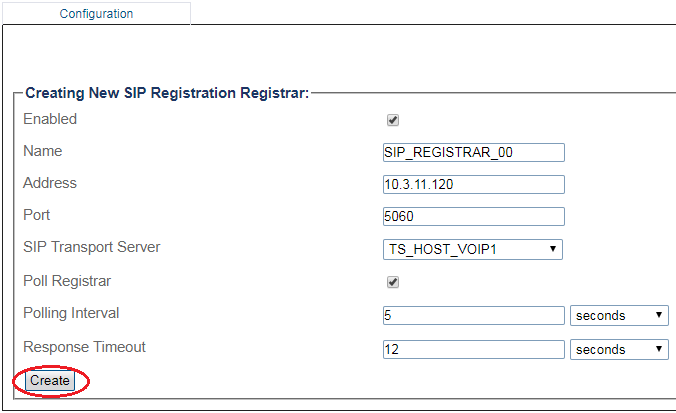

3- Create the new SIP Registration Registrar

* Enter a Name for the SIP Registration Registrar
* Enter an Address to reach the registrar
* Select the registrar destination Port
* Select which local interface will be use to send REGISTER message in SIP Transport Server
* Poll Registrar enabled by default. Sends an OPTIONS message to determine registrar availability.
* Polling Interval in seconds. Time between each OPTIONS sending message.
* Response Timeout in second. Maximum waiting time for a response to a registrar polling.
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/d/dd/Create_New_SIP_Registrar3.png" alt=""><figcaption></figcaption></figure>

\
4- Verify that the Sip registration registrar was successfully created message appears

<figure><img src="https://docs.telcobridges.com/w/images/7/75/Create_New_SIP_Registrar2.png" alt=""><figcaption></figcaption></figure>


---
