# Creating a SIP Register Filtering Rule Condition

The following procedure provides the steps to configure a SIP Register Filtering Rule Condition:

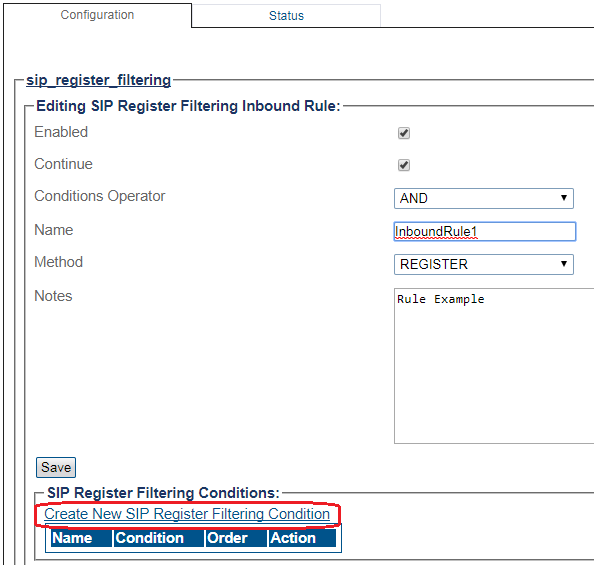

1- Click Create New SIP Register Filtering Rule Condition

<figure><img src="https://docs.telcobridges.com/w/images/1/10/Create_SIP_Register_Filtering_Rule_Condition.png" alt=""><figcaption></figcaption></figure>

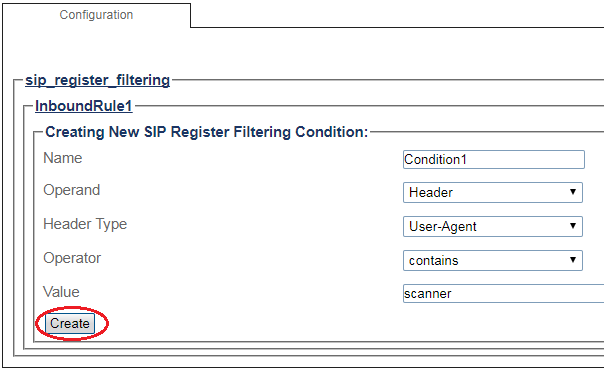

2- Create the new SIP Register Filtering Rule Condition:

* Enter a Name for this SIP Register Filtering Rule Condition. Default condition name suggestion will appear in text box.
* Select the type of Operand to monitor in the SIP message.
  * Inbound rule allows selection of Request-Line or Header operand.
  * Outbound rule allows selection of Status-Line or Header operand.
* Select Header Type identifier if Operand type is Header.
* Select the matching Operator between Operand and Value. The condition will be true when the Operand and Value are matching when applying the selected Operator.
* Enter Value to match or regular expression if Operator is matches\_regex or does\_not\_match\_regex.
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/b/b1/Create_SIP_Register_Filtering_Rule_Condition1.png" alt=""><figcaption></figcaption></figure>

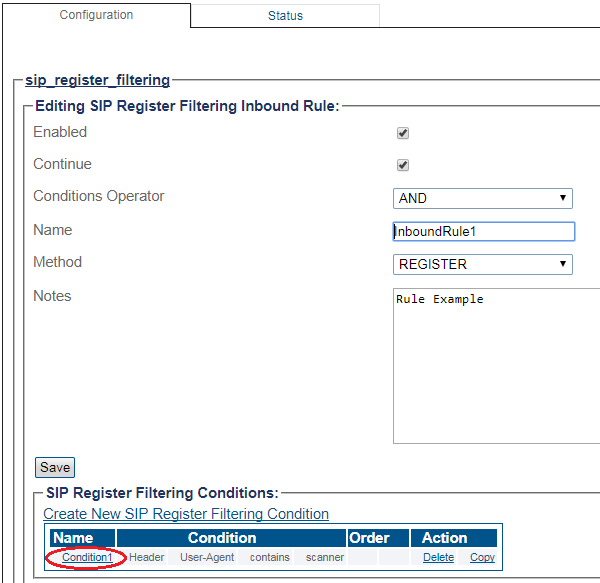

3- Verify that the Sip register filtering rule condition was successfully created. message appears

<figure><img src="https://docs.telcobridges.com/w/images/f/f3/Create_SIP_Register_Filtering_Rule_Condition2.png" alt=""><figcaption></figcaption></figure>

<figure><img src="https://docs.telcobridges.com/w/images/7/7b/Create_SIP_Register_Filtering_Rule_Condition3.png" alt=""><figcaption></figcaption></figure>
