# Configure Fax Passthrough

To enable passthrough:

1\. Select Profiles from the navigation menu.

<figure><img src="https://docs.telcobridges.com/w/images/8/8e/ConfigureFaxPassthrough_0.png" alt=""><figcaption></figcaption></figure>

\
2\. Click Create New Profile

<figure><img src="https://docs.telcobridges.com/w/images/3/37/ConfigureFaxPassthrough_1.png" alt=""><figcaption></figcaption></figure>

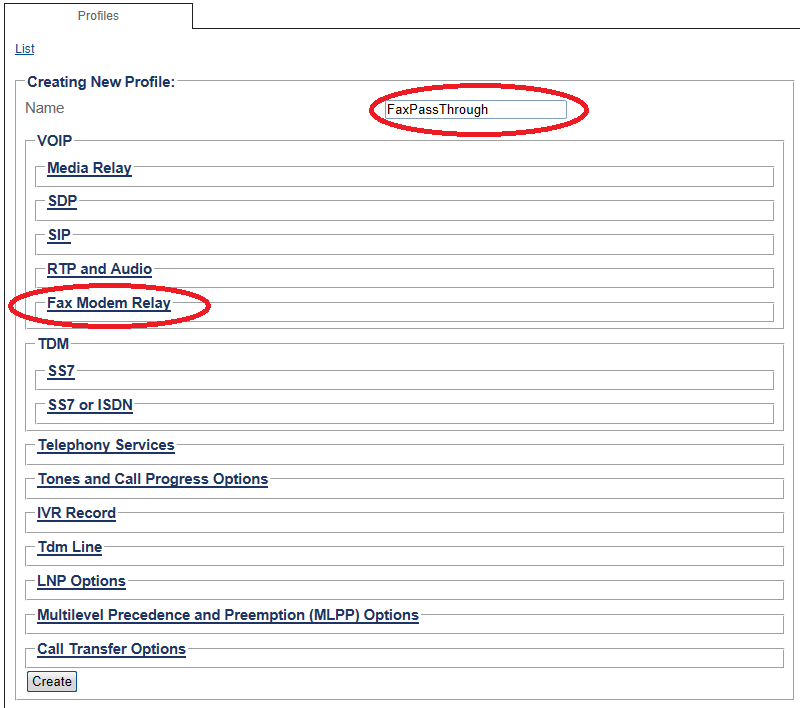

3\. Enter a name for the Fax Profile.

* Click Fax/Modem Relay to expand the view.

<figure><img src="https://docs.telcobridges.com/w/images/a/a7/ConfigureFaxPassthrough_2_A.png" alt=""><figcaption></figcaption></figure>

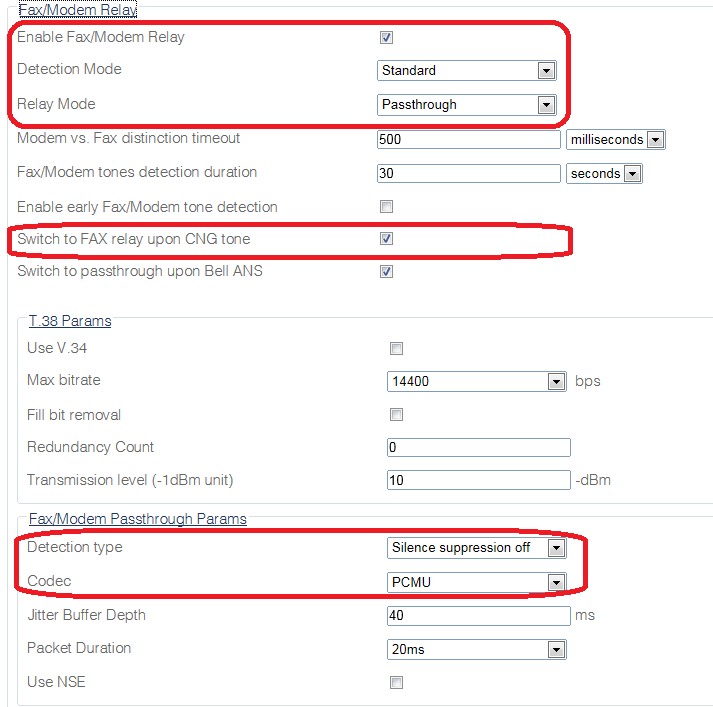

4\. Configure the settings:

* Set Detection Mode to Standard.
* Set Relay Mode to Passthrough.
* Check the Switch to FAX relay upon CNG tone option.
* Set Detection type to "Silence Suppression off"
* Verify the Codec is the same as the remote end.
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/a/a3/ConfigureFaxPassthrough_3.png" alt=""><figcaption></figcaption></figure>

\

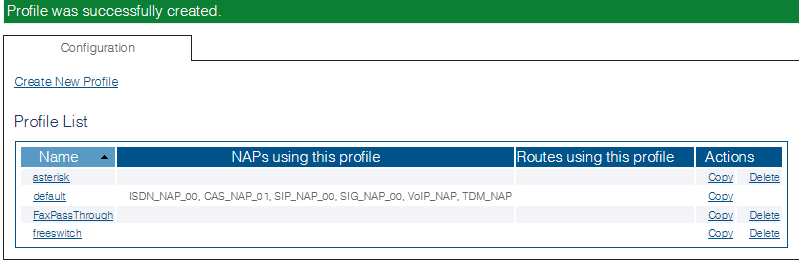

5\. Verify that the Profile was successfully created message is displayed.

<figure><img src="https://docs.telcobridges.com/w/images/b/bb/ConfigureFaxPassthrough_4.png" alt=""><figcaption></figcaption></figure>


---
