# Configure Fax NSE

To enable NSE:

1\. Select Profiles from the navigation menu.

<figure><img src="https://docs.telcobridges.com/w/images/8/8e/ConfigureFaxPassthrough_0.png" alt=""><figcaption></figcaption></figure>

\

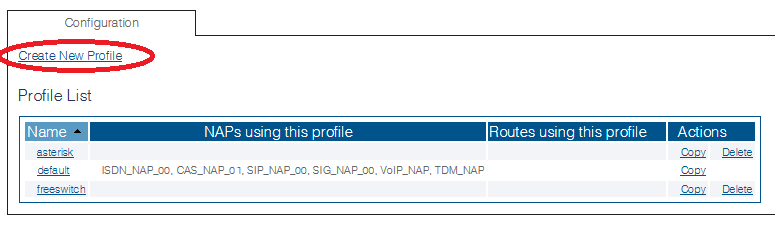

2\. Click Create New Profile

<figure><img src="https://docs.telcobridges.com/w/images/3/37/ConfigureFaxPassthrough_1.png" alt=""><figcaption></figcaption></figure>

\

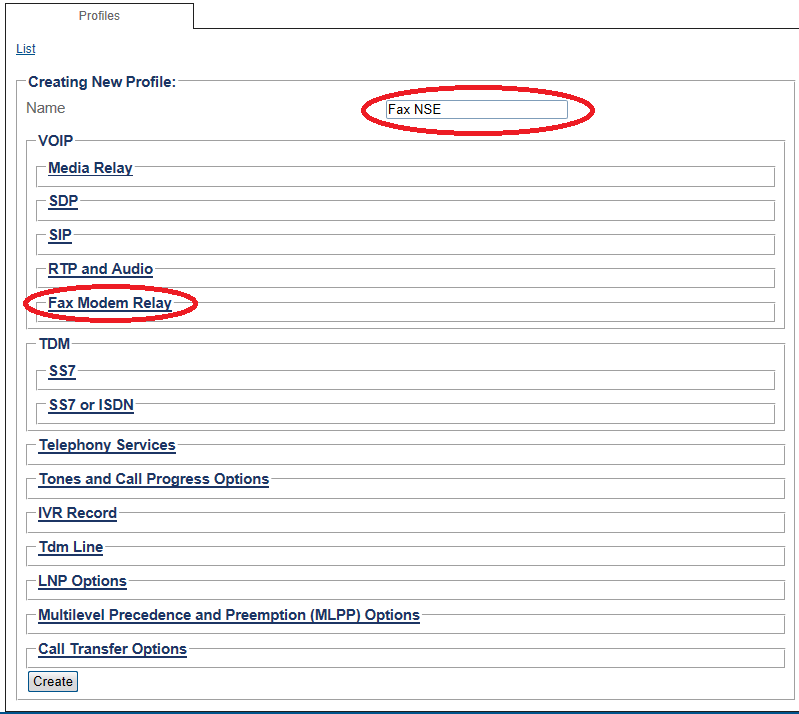

3\. Enter a name for the Fax Profile.

* Click Fax/Modem Relay to expand the view.

<figure><img src="https://docs.telcobridges.com/w/images/7/75/ConfigureFaxNSE_0_A.png" alt=""><figcaption></figcaption></figure>

\

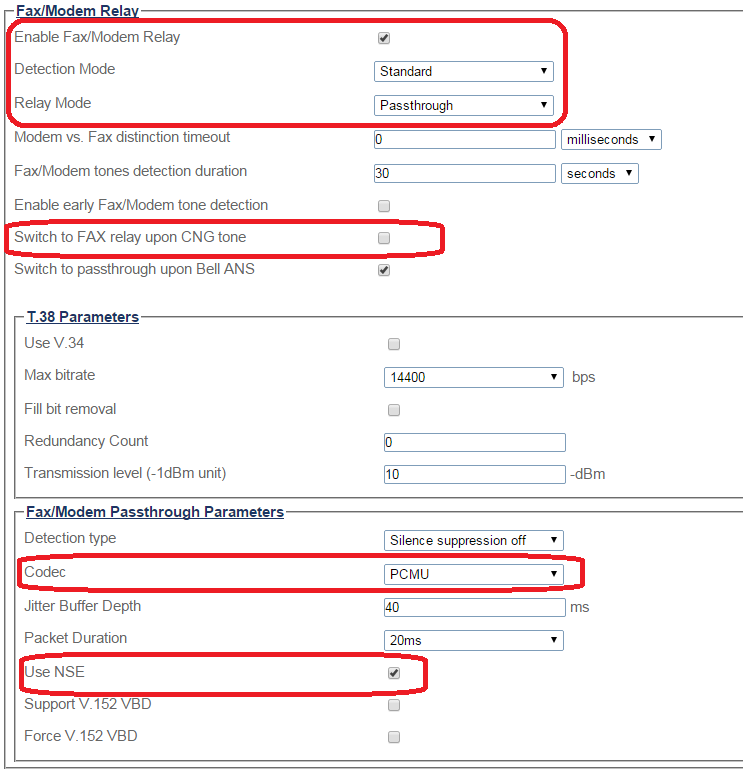

4\. Configure the settings:

* Set Enable Fax/Modem Relay to enabled.
* Set Detection Mode to Standard.
* Set Relay Mode to Passthrough.
* Select a codec. For example silence suppression
* Set Use NSE to enabled

<figure><img src="https://docs.telcobridges.com/w/images/e/e7/ConfigureFaxNSE_1.png" alt=""><figcaption></figcaption></figure>

\
5\. Verify that the Profile was successfully created message is displayed.

<figure><img src="https://docs.telcobridges.com/w/images/6/68/ConfigureFaxNSE_2_A.png" alt=""><figcaption></figcaption></figure>


---
