Configuring VoIP Interfaces
The IP interface of the VoIP0 and VoIP1 ports can be configured by setting the following:
IP Address
Netmask
Gateway
To configure a VoIP0 or VoIP1 port
1. Select IP Interfaces from the navigation panel:

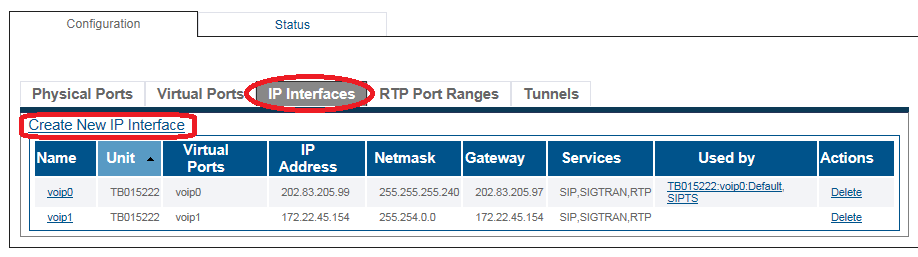

2. Click the IP Interfaces tab.
Click Create New IP Interface

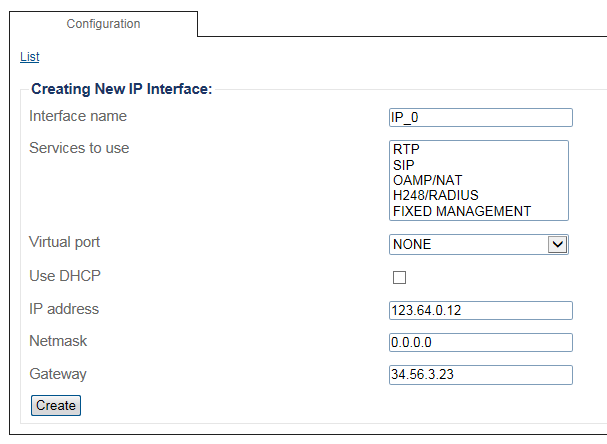

3. Configure the IP port:
Enter a name for the interface
Select a service to use for the IP inteface
Select a Virtual port from which IP packets will exit.
Indicate whether or not to use DHCP to automatically get an IP address for this port. (selecting this option removes the need to enter and IP address, Netmask, and Gateway)
Enter an IP address
Enter a Netmask
Enter a gateway address
Click Save
Note: IP addresses using different virtual ports must be on different subnets.

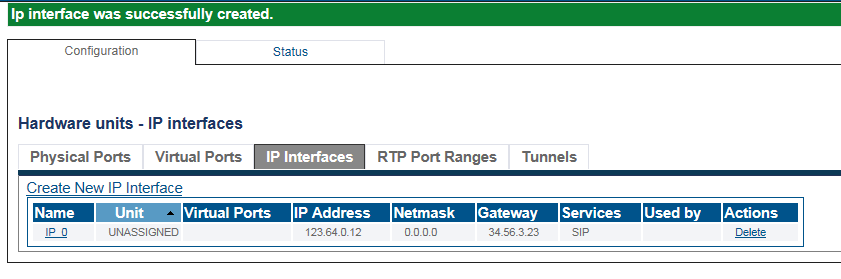

4. The changes are displayed in the IP interfaces information panel:
5. Activate the configuration
Select System from the navigation panel.
Click Activate
6. You must reboot the adapters only if you are using the vlan from ports 3441 to 3450.
Status -> Adapters -> Click on the adapter Serial Number -> Reboot adapter
It will take about 1.5 minutes to restart the unit.
