# Configuring a VLAN

After you create a virtual port, you must create a new VLAN.

<br>

### To configure a VLAN

1\. Select IP Interfaces from the navigation panel<br>

<figure><img src="https://docs.telcobridges.com/w/images/b/ba/Create_Vlan_Interface_Tsbc_0.png" alt=""><figcaption></figcaption></figure>

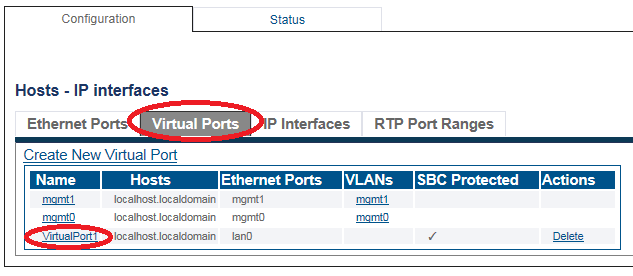

2\. Click the Virtual Ports tab.

* Select a Virtual Port<br>

<figure><img src="https://docs.telcobridges.com/w/images/2/29/Create_Vlan_Interface_Tsbc_1.png" alt=""><figcaption></figcaption></figure>

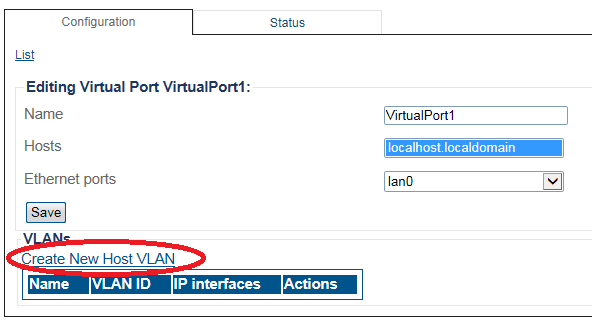

3\. Create a VLAN that uses this virtual port

* Click Create new Host VLAN

<figure><img src="https://docs.telcobridges.com/w/images/c/c1/Create_Vlan_Interface_Tsbc_2.png" alt=""><figcaption></figcaption></figure>

4\. Configure the new VLAN

**Important Note**

Vlans can be configured on the SBC in these cases:<br>

* Baremetal installation
* VMware installation with Passthrough or SR-IOV network interfaces
* VMware installation with a network interface using vlan ID 4095

\
Vlans should not be configured on the SBC in this case:<br>

* VMware installation with network interfaces using vlans from 1 to 4094

In this case, all interfaces on the SBC should be configured as untagged. Vlans are configured in the VMware port Groups.\
Please check here: [How to add VMware Network Interfaces](https://prosbcdocs.telcobridges.com/initial-installation/1.-instructions-by-platform/virtual-self-hosted-installation/virtual-vmware/adding-network-interfaces-in-vmware)\
\
If VLANs must be configured, follow these steps:<br>

* Enter a name for the VLAN
* If the port is to be used untagged, make sure Untagged is checked.
* If the port is to be used with a 802.1Q tag, uncheck Untagged and enter a VLAN ID.
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/9/91/Create_Vlan_Interface_Tsbc_3.png" alt=""><figcaption></figcaption></figure>

\
OR

<figure><img src="https://docs.telcobridges.com/w/images/5/52/Create_Vlan_Interface_Tsbc_4.png" alt=""><figcaption></figcaption></figure>

### List of Parameters

* [Name](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-name)
* [Untagged](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-untagged)
* [VLAN id](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-vlan-id)
* [Allow ICMP](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-allow-icmp)
* [Allow IP fragmentation](https://prosbcdocs.telcobridges.com/configuration-parameters-all#parameter-allow-ip-fragmentation)
