# Group of DIDs to multiple outbound NAPs: Priority Mode

Steps to configure label routing for Group of DIDs to a multiple outbound NAPs :

* The scenario is a group of the DIDs/Prefix will be sent the a multiple designated outbound NAPs in priority mode with some manipulations:

```
 E.g.
 DIDs/Prefix shall be sent to NAP_A and NAP_B with priority 1, NAP_C with priority 2
 111
 222
 333
 444
 555
 666
 777
 888
 999
```

So a call with called number which has any of the above prefix will be sent to NAP\_A and NAP\_B in load-sharing mode, and if both NAP\_A and NAP\_B fail, it will then sent to NAP\_C Below are the steps to configure that regarding the digitmap file and definition files:

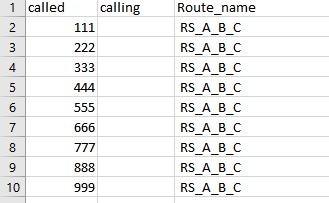

1- Compose the digitmap file - dm.csv, simple make it as below:

<figure><img src="https://docs.telcobridges.com/w/images/e/e5/Priority_dm.csv.jpg" alt=""><figcaption></figcaption></figure>

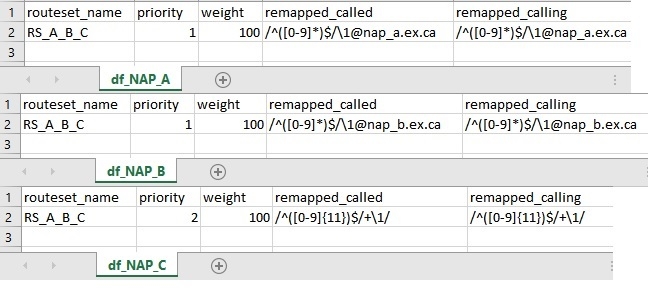

2- Compose definition file for NAP\_A,NAP\_B and NAP\_C:

<figure><img src="https://docs.telcobridges.com/w/images/7/75/Priority_df.csv.jpg" alt=""><figcaption></figcaption></figure>

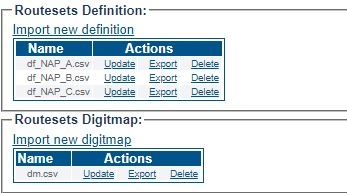

3- Import the dm.csv and the definition files via "File Db" menu

<figure><img src="https://docs.telcobridges.com/w/images/8/82/Priority_filedb.jpg" alt=""><figcaption></figcaption></figure>

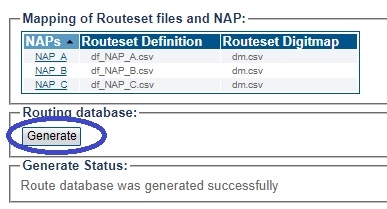

4- Associate NAP\_A, NAP\_B and NAP\_C with the created dm.csv and the definition file, and generate routes

<figure><img src="https://docs.telcobridges.com/w/images/3/35/Priority_Routeset.jpg" alt=""><figcaption></figcaption></figure>

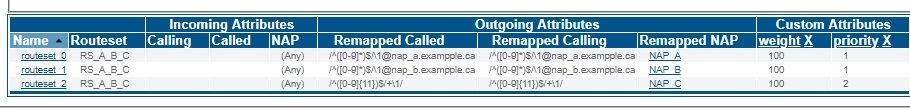

5- Verify the Routes

<figure><img src="https://docs.telcobridges.com/w/images/c/cb/Priority_Routes.jpg" alt=""><figcaption></figcaption></figure>

6- Activate the configuration


---
