# Group of DIDs to multiple outbound NAPs: Load-sharing mode

Steps to configure label routing for Group of DIDs to a multiple outbound NAPs :

* The scenario is a group of the DIDs/Prefix will be sent the a multiple designated outbound NAPs in load-sharing mode:

```
 E.g.
 DIDs/Prefix shall be sent to NAP_A, NAP_B and NAP_C in load-sharing mode
 111
 222
 333
 444
```

1- Compose the digitmap file - dm.csv, simple make it as below:

<figure><img src="https://docs.telcobridges.com/w/images/f/f4/Loadshare_dm.csv.jpg" alt=""><figcaption></figcaption></figure>

2- Compose same definition file for NAP\_A,NAP\_B and NAP\_C:

<figure><img src="https://docs.telcobridges.com/w/images/6/68/Loadshare_df.csv.jpg" alt=""><figcaption></figcaption></figure>

3- Import the dm.csv and the definition files via "File Db" menu

<figure><img src="https://docs.telcobridges.com/w/images/a/a9/Loadshare_filedb.jpg" alt=""><figcaption></figcaption></figure>

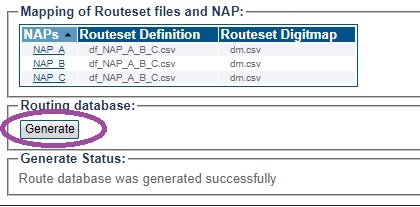

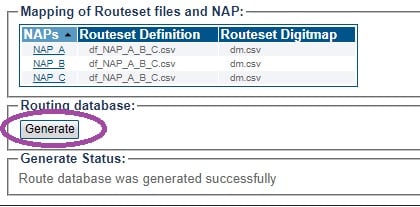

4- Associate NAP\_A, NAP\_B and NAP\_C with the created dm.csv and the definition file, and generate routes

<figure><img src="https://docs.telcobridges.com/w/images/9/97/Loadshare_Routeset.jpg" alt=""><figcaption></figcaption></figure>

5- Verify the Routes

<figure><img src="https://docs.telcobridges.com/w/images/7/77/Loadshare_Routes.jpg" alt=""><figcaption></figcaption></figure>

6- Activate the configuration


---
