# Add Digitmap Files to the System

A Digitmap file is created using a comma separated value (CSV) format. Create a file with the desired Direct Inward Dialling (DID) numbers for the system. DO NOT put any spaces between commas and column names.\
For example:

```
called,calling,routeset_name
403200,,Calgary_AB
514201,,Montreal_Qc
514202,,Montreal_Qc
514203,,Montreal_Qc
```

\
To add Digitmap files to the system:

1- Click FileDB in the navigation panel

<br>

<figure><img src="https://docs.telcobridges.com/w/images/e/e7/AddDigitMapFile_0.png" alt=""><figcaption></figcaption></figure>

\

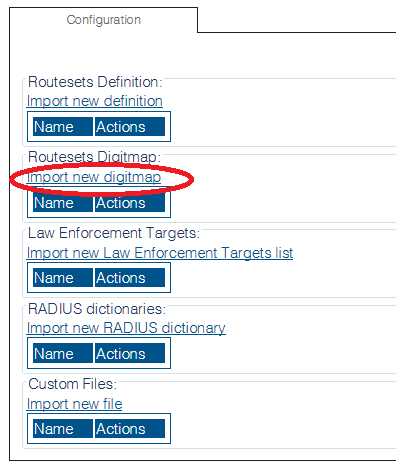

2- Click Import new digitmap

<br>

<figure><img src="https://docs.telcobridges.com/w/images/9/9b/AddDigitMapFile_1.png" alt=""><figcaption></figcaption></figure>

\
3- Click Browse and select the Digitmap that you wish to import.

* Click Import

<br>

<figure><img src="https://docs.telcobridges.com/w/images/a/a2/AddDigitMapFile_2.png" alt=""><figcaption></figcaption></figure>

\
4- The Digitmap files are displayed in the Routesets digitmap table.

<br>

<figure><img src="https://docs.telcobridges.com/w/images/b/bf/AddDigitMapFile_3.png" alt=""><figcaption></figcaption></figure>

You can use RestfulAPI to add/modify Digitmap Files. Please check the following link [Toolpack:Add Edit Digitmap Files RestFul A](https://docs.telcobridges.com/wiki/Toolpack:Add_Edit_Digitmap_Files_RestFul_A)


---
