# SIP Network Peering / IP Carrier Interconnection

## Introduction

The SIP Network Peering / IP Carrier Interconnection Example Configuration provides you with a step by step SIP Network Peering / IP Carrier Interconnection Configuration of ProSBC systems, using the Web Portal configuration tool. Complete general installation configuration steps, before you begin configuring your specific scenario.

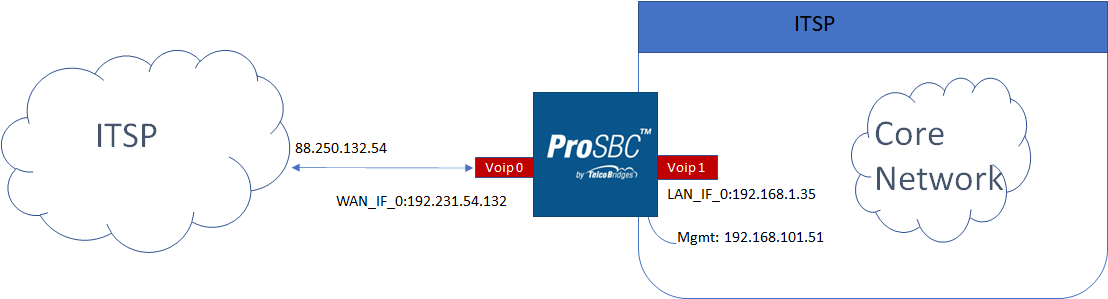

## SIP Network Peering / IP Carrier Interconnection Example

<br>

<figure><img src="https://docs.telcobridges.com/w/images/2/28/ProSBC_SIP_Peering.png" alt=""><figcaption></figcaption></figure>

### Prerequisites

ProSBC devices must be installed as described in their respective installation guides.

## IP Network Configuration

### Virtual Port Configuration for Wide Area Network

1\. Select IP Interfaces from the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/f/f4/Create_Voip_Interface_Tsbc_0.png" alt=""><figcaption></figcaption></figure>

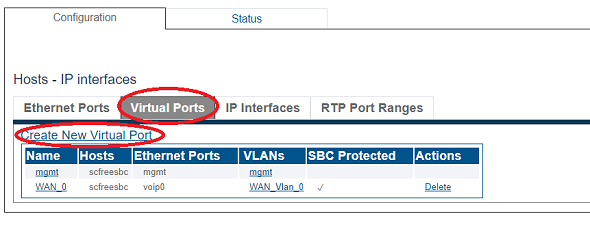

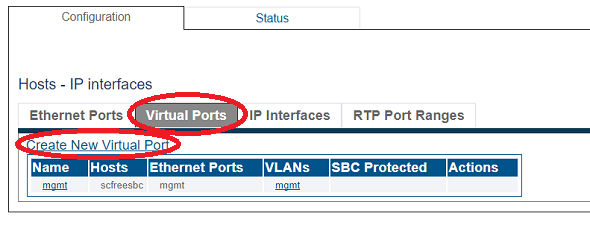

2\. Click the Virtual Ports tab.

* Click Create New Virtual Port

<figure><img src="https://docs.telcobridges.com/w/images/f/f6/SIP_Trunking_VP_Create.png" alt=""><figcaption></figcaption></figure>

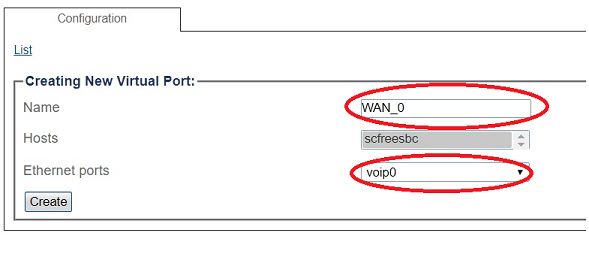

3\. Configure the virtual port.

* Enter a name for the virtual port
* Select the host(s) to which the virtual port is assigned
* Select a physical port to which the virtual port is assigned
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/b/b0/SIP_Trunking_VP_WAN.png" alt=""><figcaption></figcaption></figure>

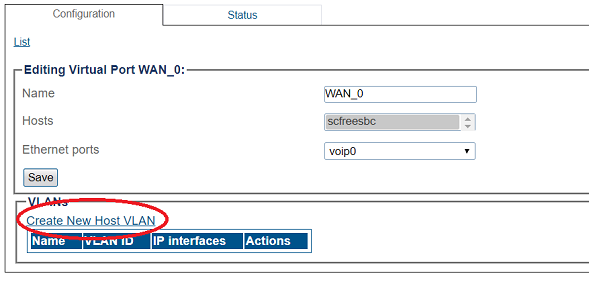

4\. Create a VLAN that uses this virtual port

* Click Create new Host VLAN

<figure><img src="https://docs.telcobridges.com/w/images/8/8b/SIP_Trunking_Vlan_WAN.png" alt=""><figcaption></figcaption></figure>

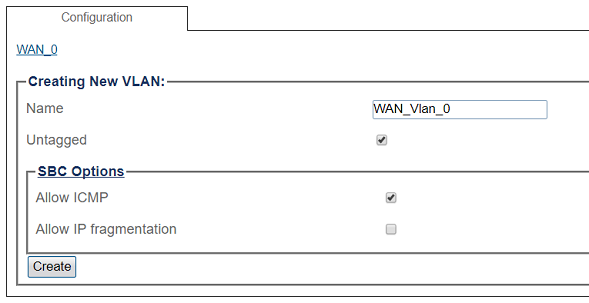

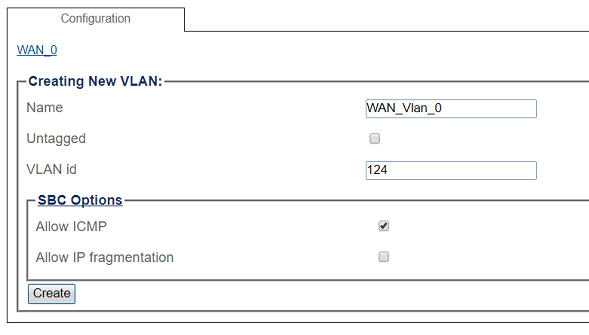

5\. Configure the new VLAN

* Enter a name for the VLAN
* If the port is to be used untagged, make sure Untagged is checked.
* If the port is to be used with a 802.1Q tag, uncheck Untagged and enter a VLAN ID.
* Click Create<br>

<figure><img src="https://docs.telcobridges.com/w/images/1/14/SIP_Trunking_Vlan_WAN_Interface_1.png" alt=""><figcaption></figcaption></figure>

OR

<figure><img src="https://docs.telcobridges.com/w/images/7/78/SIP_Trunking_Vlan_WAN_Interface_2.png" alt=""><figcaption></figcaption></figure>

### Virtual Port Configuration for Local Area Network

1\. Select IP Interfaces from the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/f/f4/Create_Voip_Interface_Tsbc_0.png" alt=""><figcaption></figcaption></figure>

2\. 2. Click the Virtual Ports tab.

* Click Create New Virtual Port

<figure><img src="https://docs.telcobridges.com/w/images/9/90/SIP_Trunking_VP_Create_LAN.png" alt=""><figcaption></figcaption></figure>

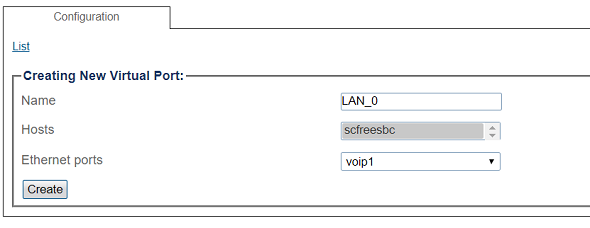

3\. Configure the virtual port.

* Enter a name for the virtual port
* Select the host(s) to which the virtual port is assigned
* Select a physical port to which the virtual port is assigned
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/1/1c/SIP_Trunking_VP_LAN.png" alt=""><figcaption></figcaption></figure>

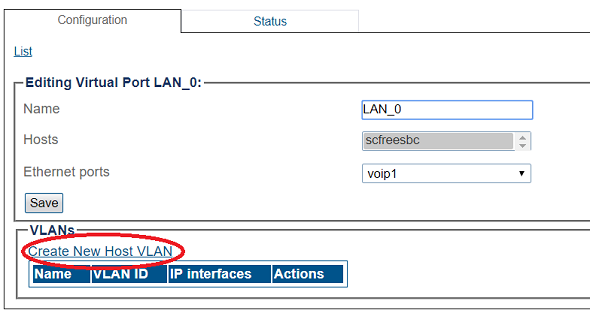

4\. Create a VLAN that uses this virtual port

* Click Create new Host VLAN

<figure><img src="https://docs.telcobridges.com/w/images/9/9f/SIP_Trunking_Vlan_LAN.png" alt=""><figcaption></figcaption></figure>

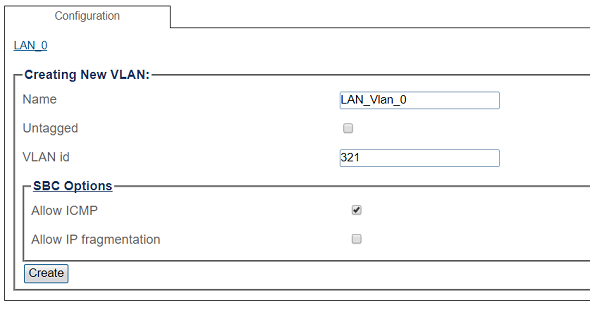

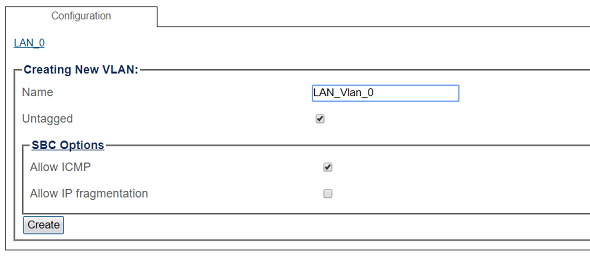

5\. Configure the new VLAN

* Enter a name for the VLAN
* If the port is to be used untagged, make sure Untagged is checked.
* If the port is to be used with a 802.1Q tag, uncheck Untagged and enter a VLAN ID.
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/2/2d/SIP_Trunking_Vlan_LAN_Interface_1.png" alt=""><figcaption></figcaption></figure>

OR

<figure><img src="https://docs.telcobridges.com/w/images/9/94/SIP_Trunking_Vlan_LAN_Interface_2.png" alt=""><figcaption></figcaption></figure>

### Configuring IP Interface for Wide Area Network

1\. Select IP Interfaces from the navigation panel:

<figure><img src="https://docs.telcobridges.com/w/images/9/90/Create_IP_Interface_Tsbc_0.png" alt=""><figcaption></figcaption></figure>

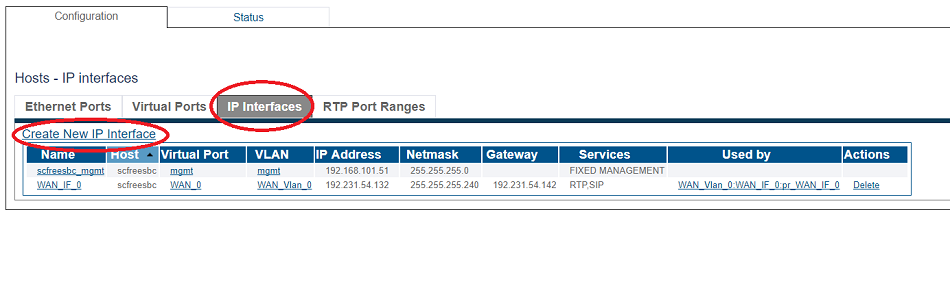

2\. Click the IP Interfaces tab.

* Click Create New IP Interface

<figure><img src="https://docs.telcobridges.com/w/images/7/7b/Create_IP_if_WAN_1.png" alt=""><figcaption></figcaption></figure>

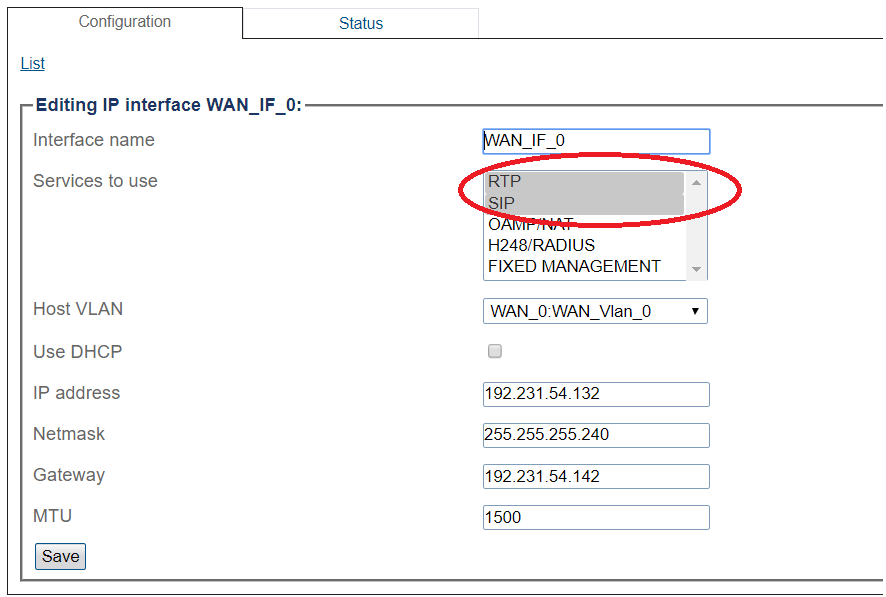

3\. Configure the IP interface:

* Enter a name for the interface
* Select 1 or more services to use for the IP interface (RTP and SIP).
* Select the Host VLAN from which IP packets will exit.
* Indicate whether or not to use DHCP to automatically get an IP address for this port. (selecting this option removes the need to enter and IP address, Netmask, and Gateway)
* Enter an IP address
* Enter a Netmask
* Enter a gateway address
* Click Save<br>

<figure><img src="https://docs.telcobridges.com/w/images/f/fe/Create_IPif_WAN_1.png" alt=""><figcaption></figcaption></figure>

### Configuring IP Interface for Local Area Network

1\. Select IP Interfaces from the navigation panel:

<figure><img src="https://docs.telcobridges.com/w/images/9/90/Create_IP_Interface_Tsbc_0.png" alt=""><figcaption></figcaption></figure>

2\. Click the IP Interfaces tab.

* Click Create New IP Interface

<figure><img src="https://docs.telcobridges.com/w/images/1/12/Create_IPif_LAN.png" alt=""><figcaption></figcaption></figure>

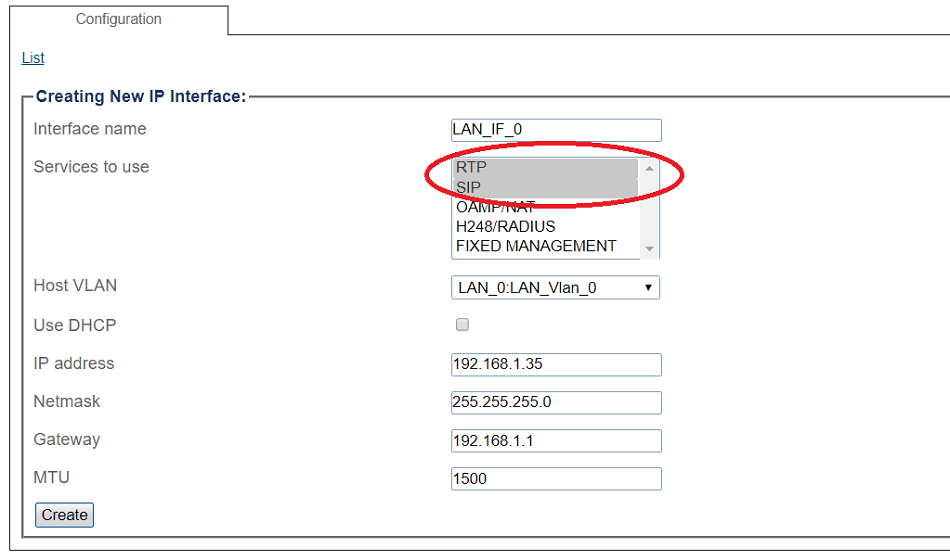

3\. Configure the IP interface:

* Enter a name for the interface
* Select 1 or more services to use for the IP interface (RTP and SIP).
* Select the Host VLAN from which IP packets will exit.
* Indicate whether or not to use DHCP to automatically get an IP address for this port. (selecting this option removes the need to enter and IP address, Netmask, and Gateway)
* Enter an IP address
* Enter a Netmask
* Enter a gateway address
* Click Save

<figure><img src="https://docs.telcobridges.com/w/images/1/17/Create_IP_if_LAN_1.png" alt=""><figcaption></figcaption></figure>

## SIP Stack Configuration

You must configure SIP signaling for your system. The first step in doing so is to create a SIP stack:

1- Click SIP in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/5/58/SIP_NavigationMenu.png" alt=""><figcaption></figcaption></figure>

\
2- Click Create New Sip

<figure><img src="https://docs.telcobridges.com/w/images/c/cb/Create_New_SIP.png" alt=""><figcaption></figcaption></figure>

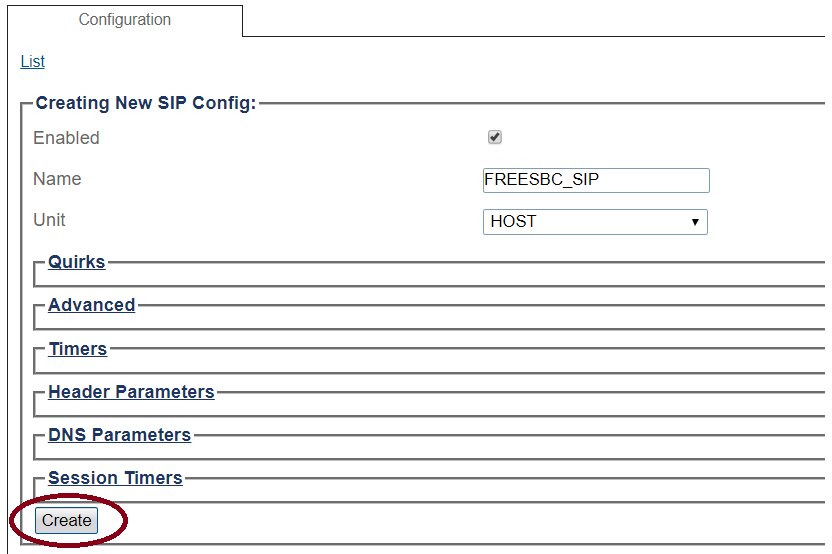

3- Create the new SIP stack:

* Verify that the box labeled Enabled is checked
* Enter a name for the stack
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/4/44/SIP_Trunking_SIP_Stack.png" alt=""><figcaption></figcaption></figure>

### SIP Transport Server Configuration for Wide Area Network

1- Click SIP in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/5/58/SIP_NavigationMenu.png" alt=""><figcaption></figcaption></figure>

\
2- Select a SIP stack for which you wish to create a transport server

<figure><img src="https://docs.telcobridges.com/w/images/e/ee/SIP_Config_List.png" alt=""><figcaption></figcaption></figure>

3- Click Create New Transport Server

<figure><img src="https://docs.telcobridges.com/w/images/e/ea/WAN_SIP_TransportServer.png" alt=""><figcaption></figcaption></figure>

\

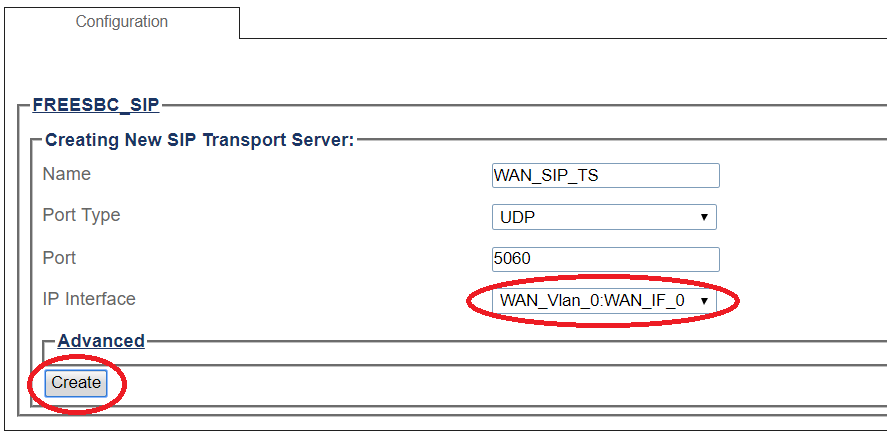

4- Create the new SIP transport server:

* Enter a name for the server
* Select an appropriate port type
* Select an appropriate host IP interface
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/0/07/WAN_SIP_TransportServer1.png" alt=""><figcaption></figcaption></figure>

### SIP Transport Server Configuration for Local Area Network

1- Click SIP in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/5/58/SIP_NavigationMenu.png" alt=""><figcaption></figcaption></figure>

\
2- Select a SIP stack for which you wish to create a transport server

<figure><img src="https://docs.telcobridges.com/w/images/e/ee/SIP_Config_List.png" alt=""><figcaption></figcaption></figure>

3- Click Create New Transport Server

<figure><img src="https://docs.telcobridges.com/w/images/e/ea/WAN_SIP_TransportServer.png" alt=""><figcaption></figcaption></figure>

\

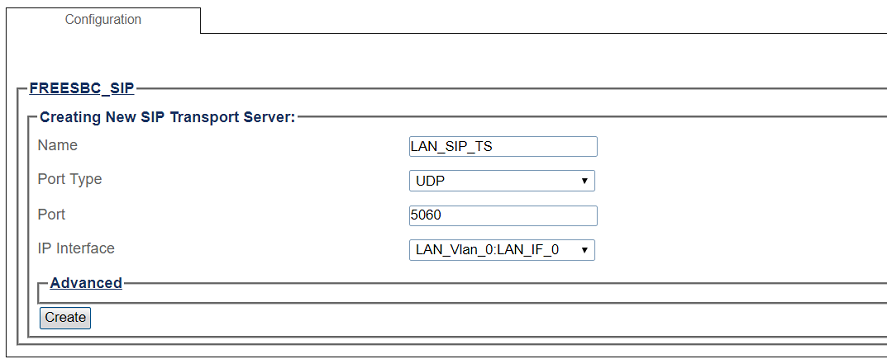

4- Create the new SIP transport server:

* Enter a name for the server
* Select an appropriate port type
* Select an appropriate host IP interface
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/c/c9/LAN_SIP_TransportServer1.png" alt=""><figcaption></figcaption></figure>

## SIP NAP

A Network Access Point or NAP represents the entry point to another network or destination peer (e.g. SIP proxy,SIP trunk, etc)

### SIP NAP Configuration for Wide Area Network

To create a new NAP:

1- Click NAPs in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/3/38/NAP_NavigationMenu.png" alt=""><figcaption></figcaption></figure>

\
2- Click Create New NAP

<figure><img src="https://docs.telcobridges.com/w/images/2/26/Create_New_NAP_SIP.png" alt=""><figcaption></figcaption></figure>

\

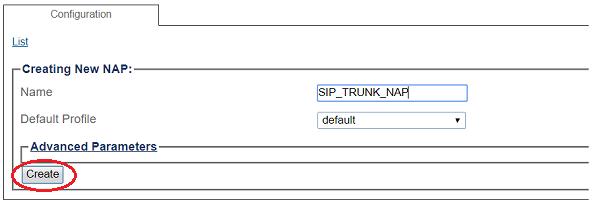

3- Create the new NAP:

* Enter a name for the NAP
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/f/f0/SIP_Trunk_NAP_Create.png" alt=""><figcaption></figcaption></figure>

\
4- Verify that the NAP was successfully created message appears

<figure><img src="https://docs.telcobridges.com/w/images/f/f0/Create_New_NAP_SIP2.png" alt=""><figcaption></figcaption></figure>

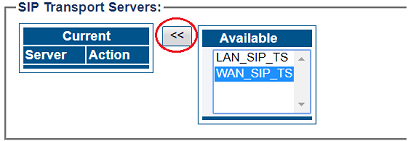

5- Associate a SIP transport server with the new NAP:

* Select a SIP Transport Server from the Available list
* Click "<<" to associate the WAN\_SIP\_TS with the NAP

<figure><img src="https://docs.telcobridges.com/w/images/c/cf/SIP_Trunk_NAP_Create_1.png" alt=""><figcaption></figcaption></figure>

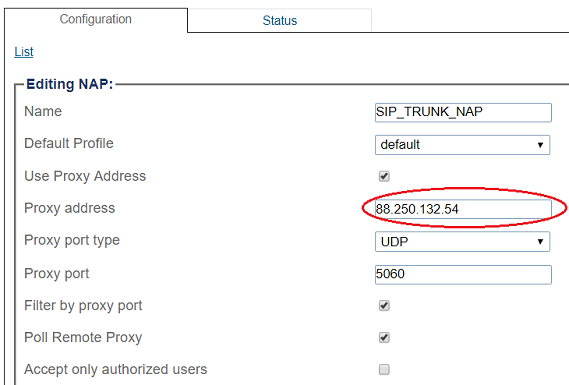

6- Enter SIP Trunk proxy address:

<figure><img src="https://docs.telcobridges.com/w/images/c/c4/SIP_Trunk_NAP_Create_2.png" alt=""><figcaption></figcaption></figure>

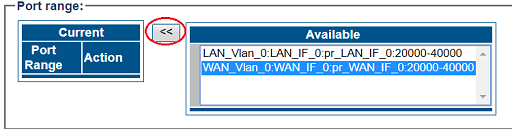

7- Associate a Port range with the new NAP:

* Select a port range from the Available list
* Click "<<" to associate WAN\_Vlan:0 Port range with the NAP

<figure><img src="https://docs.telcobridges.com/w/images/3/31/SIP_Trunk_NAP_Create_3.png" alt=""><figcaption></figcaption></figure>

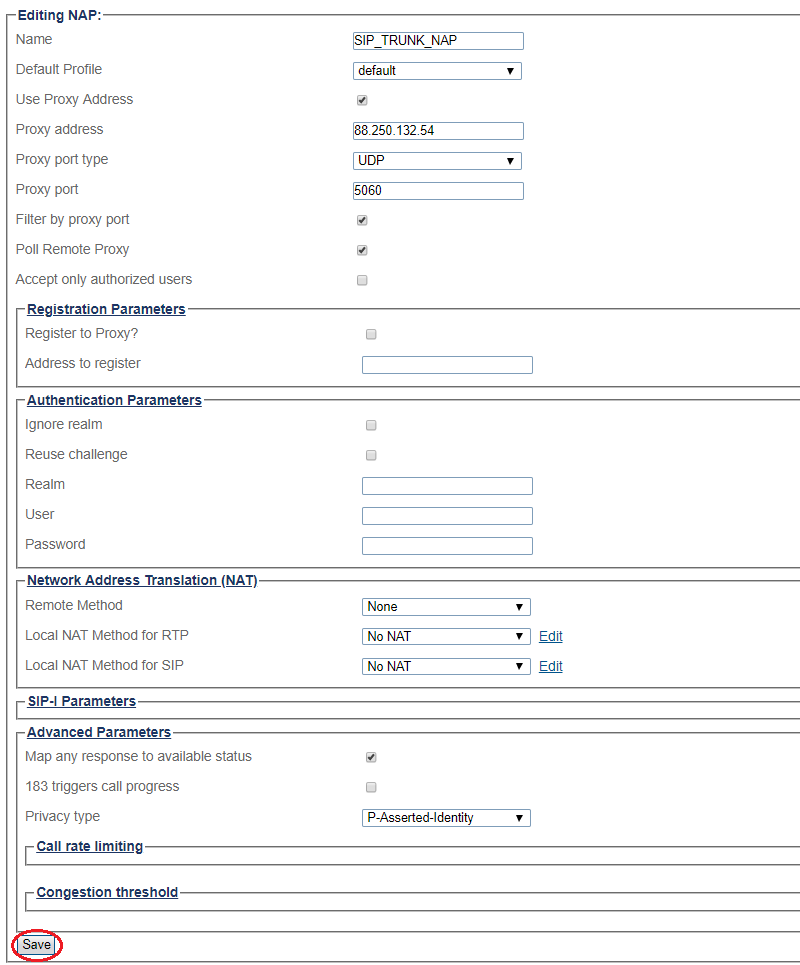

8- Configure settings for the following parameter groups as required:

* Registration Parameters
* Authentication Parameters
* Network Address Translation
* SIP-I Parameters
* Advanced Parameters
* Click Save

<figure><img src="https://docs.telcobridges.com/w/images/4/4f/SIP_Trunk_NAP_Create_4.png" alt=""><figcaption></figcaption></figure>

### SIP NAP Configuration for Local Area Network

To create a new NAP:

1- Click NAPs in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/3/38/NAP_NavigationMenu.png" alt=""><figcaption></figcaption></figure>

\
2- Click Create New NAP

<figure><img src="https://docs.telcobridges.com/w/images/2/26/Create_New_NAP_SIP.png" alt=""><figcaption></figcaption></figure>

\

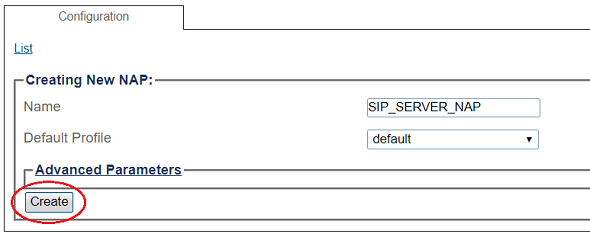

3- Create the new NAP:

* Enter a name for the NAP
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/b/b4/SIP_Server_NAP_Create.png" alt=""><figcaption></figcaption></figure>

\
4- Verify that the NAP was successfully created message appears

<figure><img src="https://docs.telcobridges.com/w/images/f/f0/Create_New_NAP_SIP2.png" alt=""><figcaption></figcaption></figure>

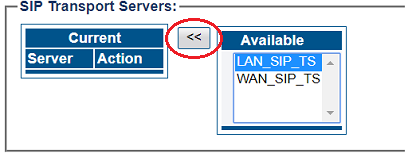

5- Associate a SIP transport server with the new NAP:

* Select a SIP Transport Server from the Available list
* Click "<<" to associate the LAN\_SIP\_TS with the NAP

<figure><img src="https://docs.telcobridges.com/w/images/3/33/SIP_Server_NAP_Create_1.png" alt=""><figcaption></figcaption></figure>

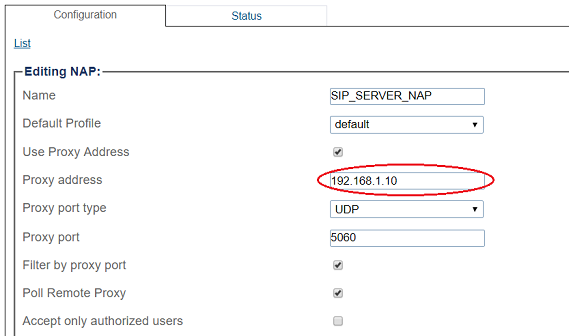

6- Enter SIP Server proxy address:

<figure><img src="https://docs.telcobridges.com/w/images/6/65/SIP_Server_NAP_Create_2.png" alt=""><figcaption></figcaption></figure>

7- Associate a Port range with the new NAP:

* Select a port range from the Available list
* Click "<<" to associate LAN\_Vlan:0 Port range with the NAP

<figure><img src="https://docs.telcobridges.com/w/images/1/14/SIP_Server_NAP_Create_3.png" alt=""><figcaption></figcaption></figure>

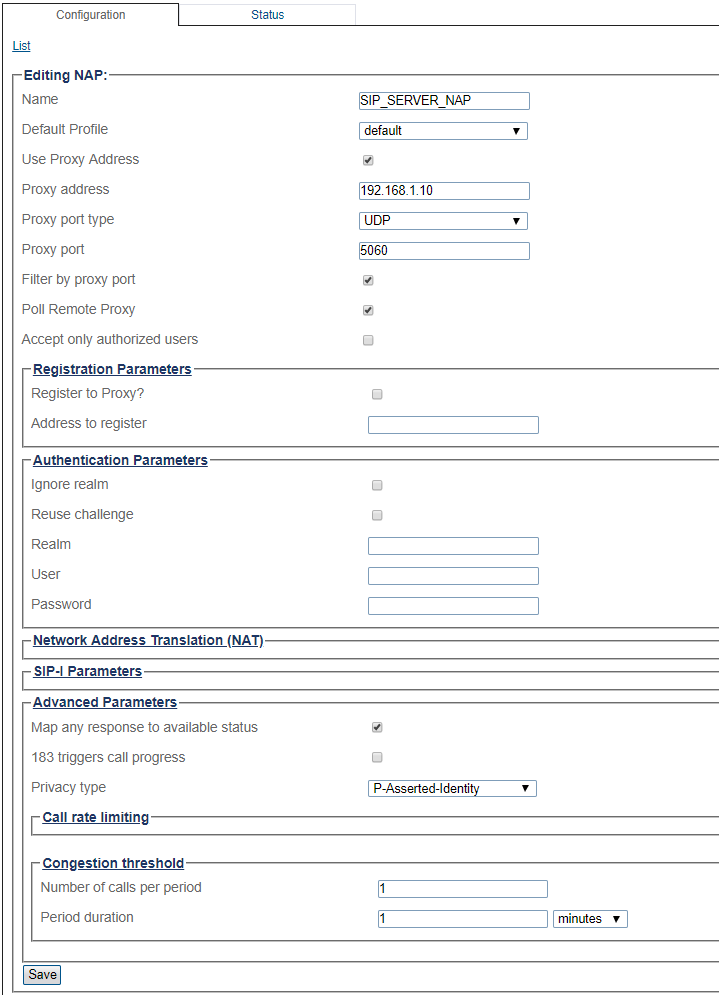

8- Configure settings for the following parameter groups as required:

* Registration Parameters
* Authentication Parameters
* Network Address Translation
* SIP-I Parameters
* Advanced Parameters
* Click Save

<figure><img src="https://docs.telcobridges.com/w/images/1/12/SIP_Server_NAP_Create_4.png" alt=""><figcaption></figcaption></figure>

### Access Control List

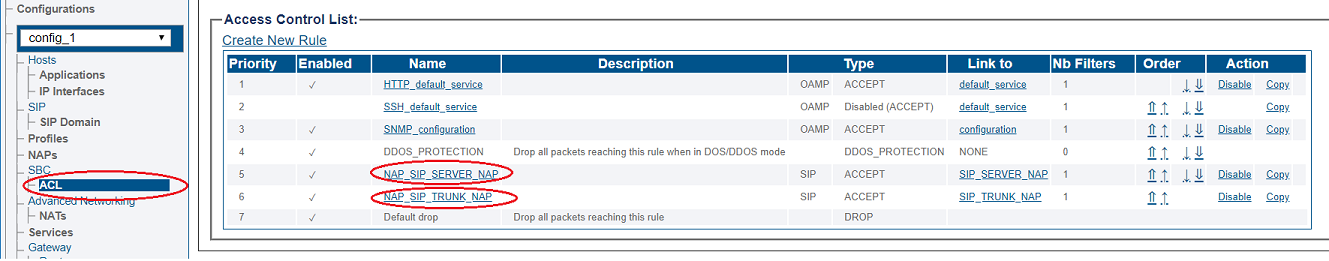

ProSBC will automatically create Access Control List for each NAP you created.

<figure><img src="https://docs.telcobridges.com/w/images/c/c1/SIP_Access_Control_List_1.png" alt=""><figcaption></figcaption></figure>

\

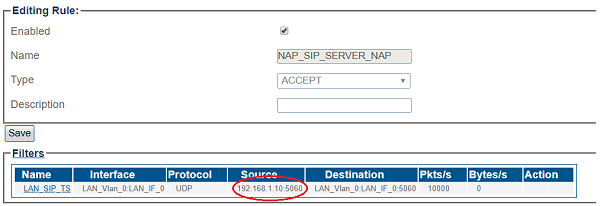

If you double click one of the created ACL, you will see ProSBC only accept the calls if the source IP matches. In this sample; the calls from 192.168.1.10 will accepted only.

<br>

<figure><img src="https://docs.telcobridges.com/w/images/6/60/SIP_Access_Control_List_2.png" alt=""><figcaption></figcaption></figure>

## Call Route

You must set up call routing for your system. [Call routing](/appendices/appendix-a-glossary/glossary-call-routing.md) refers to the ability to route calls based on criteria such as origin, destination, time of day, service provider rates, and more.<br>

### Route Configuration for SIP Trunk to SIP Server

1- Click Routes in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/b/b0/CreateCallRoute_0.png" alt=""><figcaption></figcaption></figure>

\

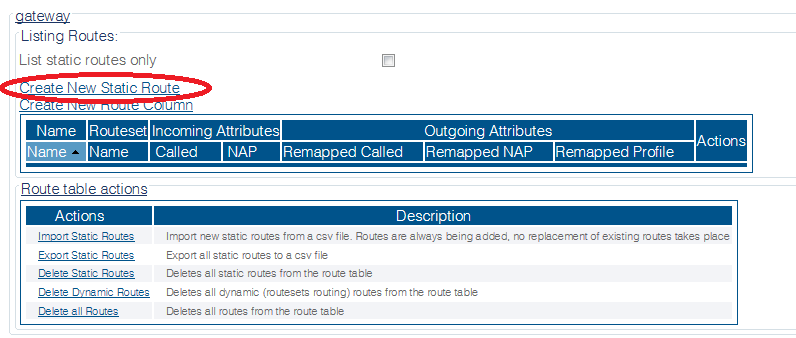

2- Click Create New Static Route

<figure><img src="https://docs.telcobridges.com/w/images/7/79/CreateCallRoute_1.png" alt=""><figcaption></figcaption></figure>

\

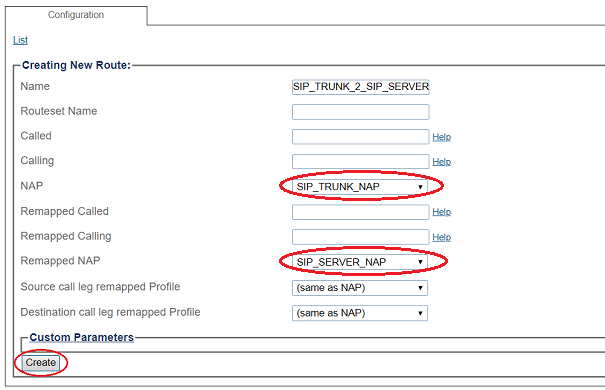

3- Create the new route:

* Enter a RoutesetName for the route
* Select SIP\_TRUNK\_NAP, to match calls from Trunk NAP
* Select SIP\_SERVER\_NAP
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/a/a4/Route_Trunk_to_Server.png" alt=""><figcaption></figcaption></figure>

\

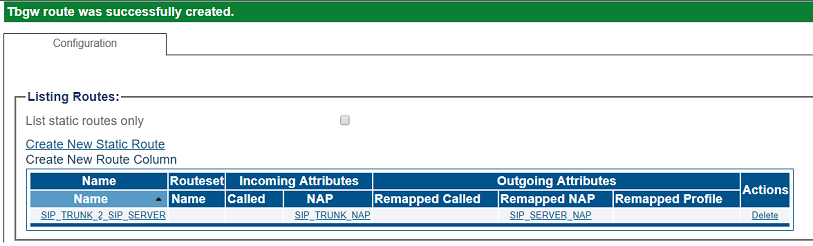

4- Verify that the "Route was successfully created" message appears, and that the new route is listed in the Routeset list

<figure><img src="https://docs.telcobridges.com/w/images/a/a2/Route_Trunk_to_Server_1.png" alt=""><figcaption></figcaption></figure>

### Route Configuration for SIP Server to SIP Trunk

1- Click Routes in the navigation panel

<figure><img src="https://docs.telcobridges.com/w/images/b/b0/CreateCallRoute_0.png" alt=""><figcaption></figcaption></figure>

\
2- Click Create New Static Route

<figure><img src="https://docs.telcobridges.com/w/images/7/79/CreateCallRoute_1.png" alt=""><figcaption></figcaption></figure>

\

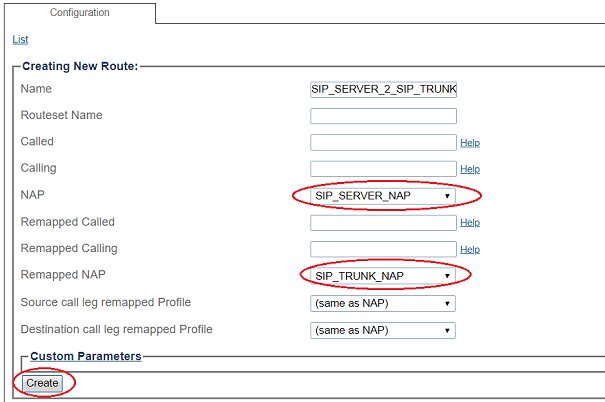

3- Create the new route:

* Enter a RoutesetName for the route
* Select SIP\_SERVER\_NAP, to match calls from Trunk NAP
* Select SIP\_TRUNK\_NAP
* Click Create

<figure><img src="https://docs.telcobridges.com/w/images/4/4e/Route_Server_to_Trunk.png" alt=""><figcaption></figcaption></figure>

\

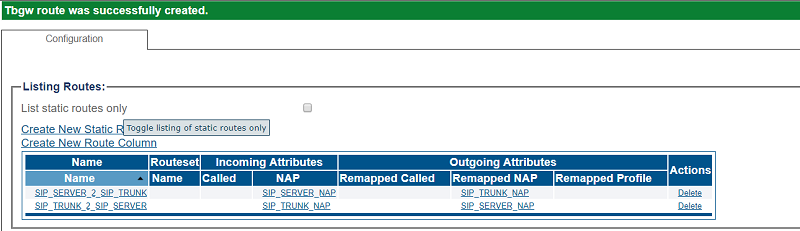

4- Verify that the "Route was successfully created" message appears and that the new route is listed in the Routeset list

<figure><img src="https://docs.telcobridges.com/w/images/d/db/Route_Server_to_Trunk_1.png" alt=""><figcaption></figcaption></figure>

## Activating the Configuration

Changes made to the configuration of the ProSBC units are stored in the OAM\&P Configuration and Logging database. In order for changes to be used by the system, they must first be activated. This is done at the system level and accessed from the Navigation panel.

Check the following link for activating the configuration;

[Toolpack:Activating\_the\_Configuration\_D](/configuration-details/configuration-by-web-portal-category/system-settings/activating-the-configuration.md)


---
