# Configuring an IP Port Range

### To configure an RTP port range

1\. Select IP Interfaces from the navigation panel:

<figure><img src="https://docs.telcobridges.com/w/images/7/7d/Create_Voip_Interface_0.png" alt=""><figcaption></figcaption></figure>

\

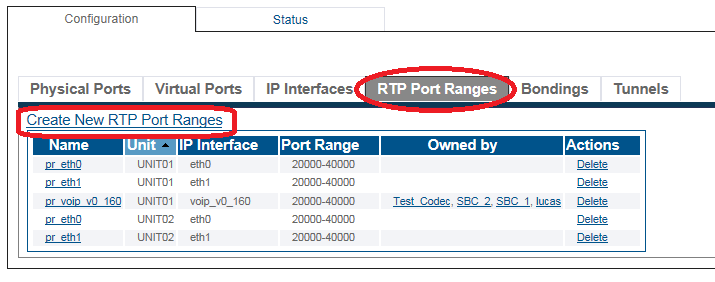

2\. Click the RTP Port Ranges tab:

* Click Create New RTP Port Ranges

<figure><img src="https://docs.telcobridges.com/w/images/3/32/CreateIP_PortRange_0.png" alt=""><figcaption></figcaption></figure>

\

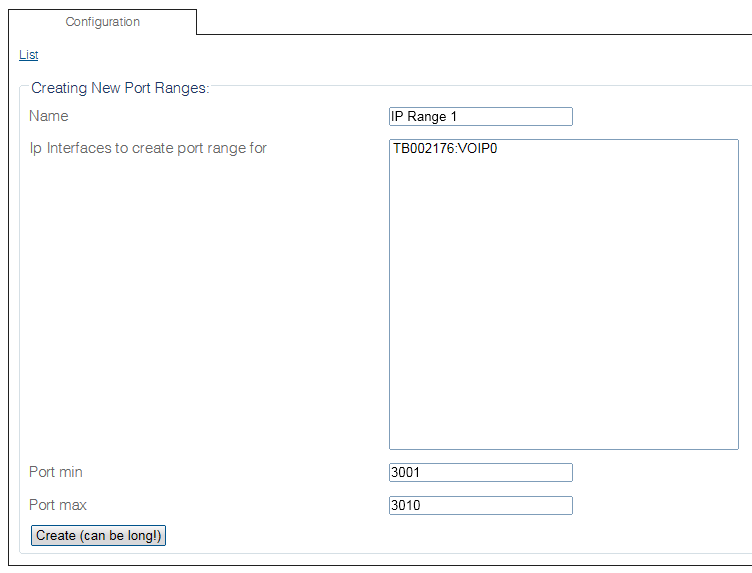

3\. Configure the range of ports:

* Enter a name for the port range
* Select one or more IP interfaces
* Enter a minimum port number for the port range
* Enter a maximum port number for the port range
* Click Create

<br>

<figure><img src="https://docs.telcobridges.com/w/images/3/38/CreateIP_PortRange_1.png" alt=""><figcaption></figcaption></figure>

<br>

Northbound Interface

### List of Parameters

* [Name](/configuration-details/configuration-parameters-all.md#parameter-name)
* [RTP Port min](/configuration-details/configuration-parameters-all.md#parameter-rtp-port-min)
* [RTP Port max](/configuration-details/configuration-parameters-all.md#parameter-rtp-port-max)


---
